Mounting Hole For Riser Tubes

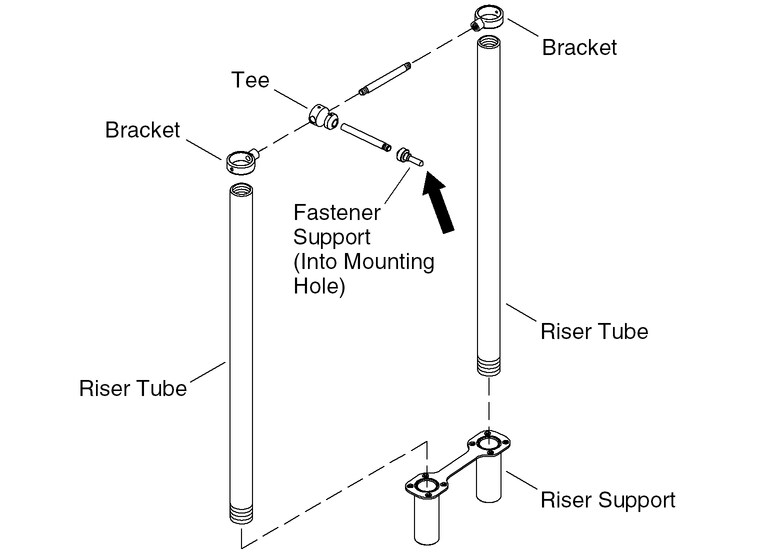

• The Escale freestanding bath is designed with a mounting hole to secure the fastener support for the Symbol® K-18492 floor-mount riser tubes.

• Review the K-18492 riser tubes installation instructions for reference.

• If you are not using KOHLER® riser tubes, the mounting hole will be exposed. A cap is not provided to cover the hole.

NOTE: The Escale K-14037 freestanding bath does not have a mounting hole, nor do any of the Escale drop-in baths (K-11343, K-11343-G, and K-11343-GCR).
