Clicker Assembly Part Change

• An engineering change was made to the toe-tap drain clicker assembly on Lithocast baths.

• Affected products are K-1800, K-1801, and K-1805.

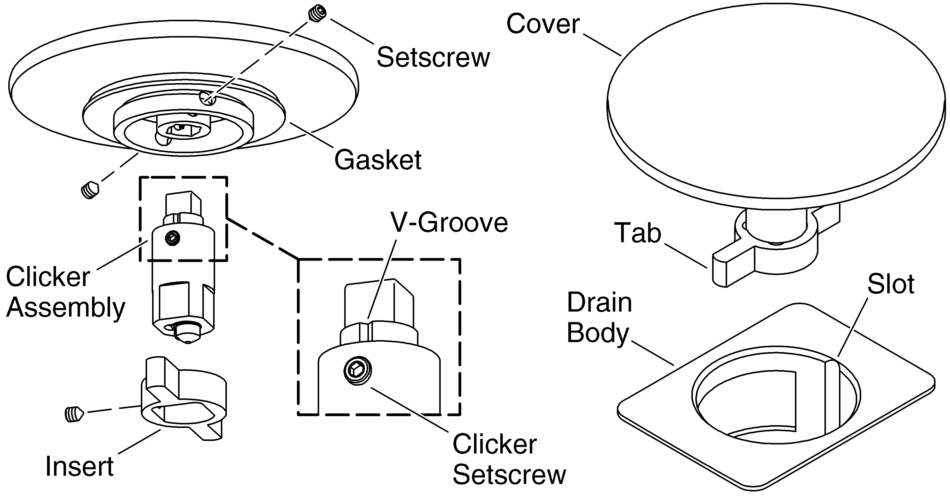

• The new assembly contains a V-groove that provides a more effective surface for the clicker setscrew to stay in place.

• The change provides a better long-term drain seal.

Clicker Assembly Replacement

NOTE: Detach the cover and insert from the clicker assembly if reusing these parts on the new assembly.

Remove the Old Assembly

• Carefully pull up on the cover to lift the clicker assembly from the drain body.

• If needed, use a hex wrench to remove the setscrews holding the cover to the clicker assembly.

• If needed, use a hex wrench to remove the setscrew securing the insert to the assembly.

• Retain all setscrews.

• Discard the old clicker assembly.

Install the New Assembly

• Place the cover and insert onto the new clicker assembly.

• Make sure the concave side of the gasket is facing down. The drain may not seal properly if the gasket is flipped.

• Add a drop of removable thread locking sealant (such as Loctite® 242) to all retained setscrews.

• Reinstall and tighten the setscrews to secure the cover and the insert to the new clicker assembly.

• Align the tabs on the insert with the slots in the drain body.

• Press the assembly fully down into the drain body.

• Close the drain and fill the bath with water to confirm proper drain operation.
