Bathing

Minimum Dimensions required, when measuring from the floor to the bottom of the window:

• 6104 Series - 37"

• 7104 Series - 33-1/2"

• 7104 AFD Series - 35-1/2"

Note: VA-80172 Window Trim kit may only be used on wall sets with flat back walls. Newer walls are not flat and have a curvature or raised aesthetic features that will interfere with the installation of the kit. Sterling shower walls do not have flat back walls.

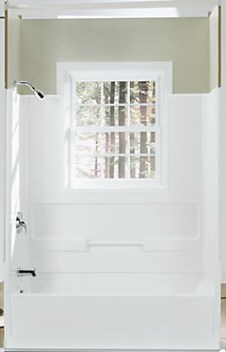

The Window Trim Kit can be used on the following Sterling series:

• 6103 Advantage Bath/Shower

• 6104 All Pro Bath/Shower

• 6204 Advantage Alcove Shower

• 7104 Performa Bath/Shower

• 7114 Accord Bath/Shower
