Overview

• Each hose that attaches to the tee contains two white snap connectors that interlock with the tee.

• The tee may leak if the snap connectors are not properly seated in the tee.

• Refer to the instructions below to properly connect and disconnect the supply hoses to the tee.

Hose and Tee Connection

Connect

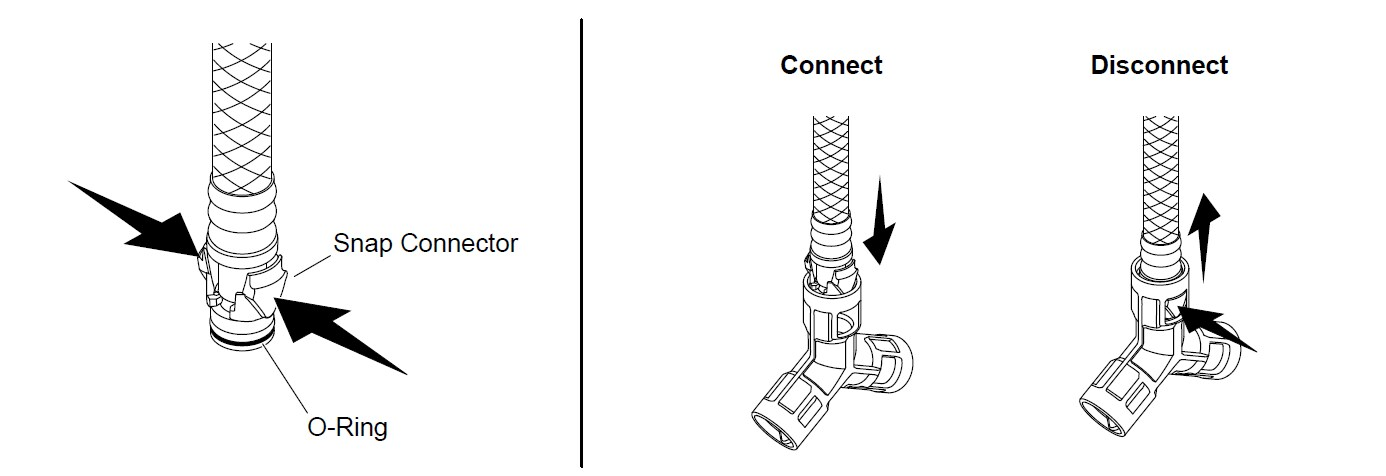

• Make sure the O-ring is seated onto the end of the hose as shown.

• Press the white snap connectors in while inserting the end of the hose into the tee.

• Push the hose and tee together until both snap connectors click into place.

Disconnect

• To detach the hose, press one side of the white snap connector in, and gently pull on the hose.

• The white snap connector will withdraw under the edge of the tee.

• Then press the opposite side snap connector to release the hose.
