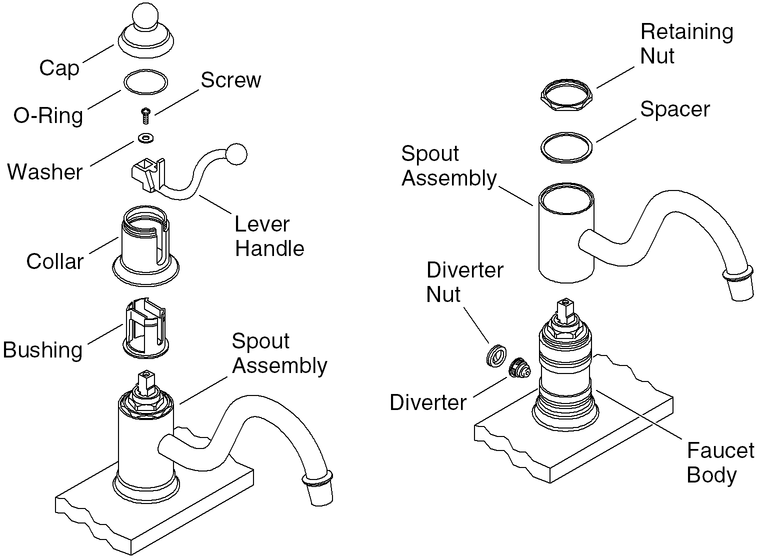

Disassemble the Faucet

Remove the Handle

• Turn off the water supply.

• Apply pressure to the side of the cap to dislodge and remove it.

• Remove the O-ring from the collar.

• Remove the screw and washer, and lift out the lever handle.

• Remove the collar by pulling it firmly upward.

• Spread and remove the bushing.

Remove the Spout

• Unthread and remove the retaining nut.

• Remove the spacer.

• Lift the spout assembly off the faucet body. To ease removal, slightly twist the spout assembly as it is lifted.

Remove the Diverter

• Grip the diverter nut with a pliers to unthread it from the faucet body.

• Pull the diverter from the faucet body.

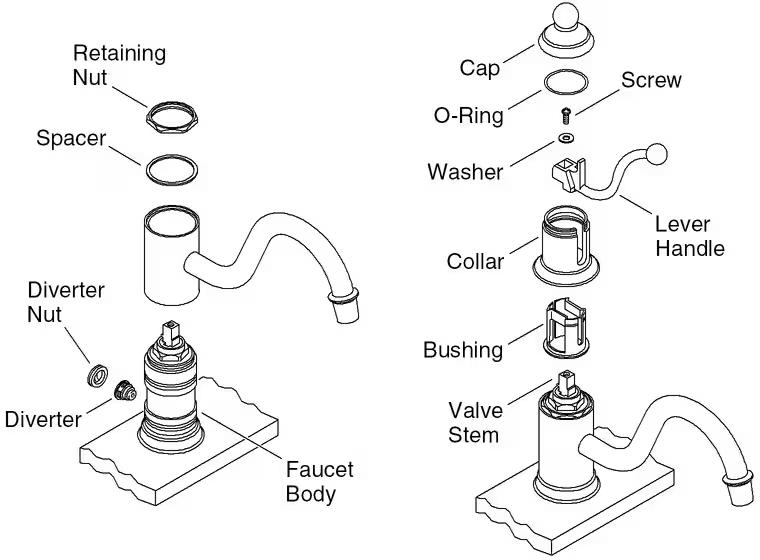

Reassemble the Faucet

Install the Diverter

• Insert the diverter into the faucet body, rubber end first.

• Thread the diverter nut into the faucet body to secure the diverter in place.

Reinstall the Spout

• Slide the spout assembly over the faucet body. If needed, slightly twist the spout assembly as it is installed to make sure it is fully seated.

• Place the spacer in the top of the spout assembly.
  Install the retaining nut.

Reinstall the Handle

• Place the bushing over the valve stem and snap it in place.

• Push the collar over the bushing, aligning the handle slot with the slot in the bushing.

• Insert the lever handle into the collar and over the valve stem.

• Secure the handle to the valve stem with the washer and screw.

• Install the O-ring onto the top of the collar.

• Reinstall the cap onto the collar. Tilt the cap to engage one side first, then fully snap it into place.
