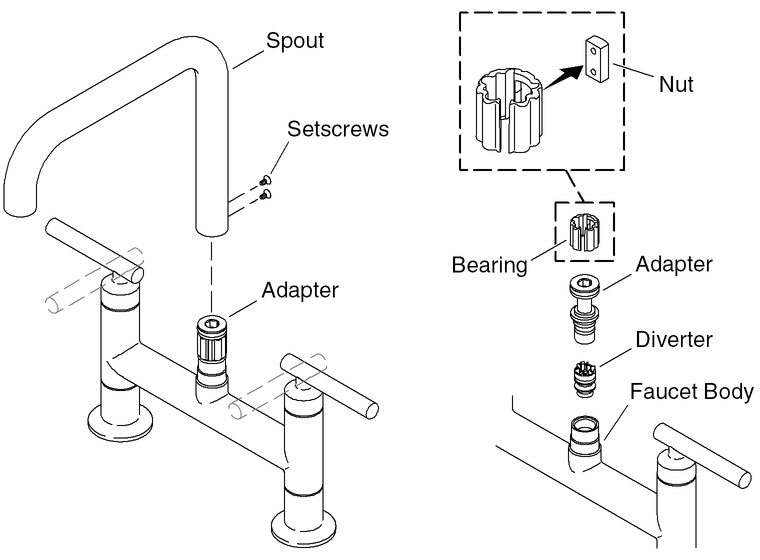

Disassemble the Faucet

Remove the Spout

• Turn off the water supply.

• Rotate the handles to the ON position to relieve pressure. Then rotate back to the OFF position.

• Using a 1/16" hex wrench, remove the two setscrews from the spout.

• Pull the spout up to remove it from the adapter.

Remove the Faucet Parts

• Using a 3/8" hex wrench, remove the adapter from the faucet body.

• Remove the bearing and nut from the adapter.

• Using a needle nose pliers, grasp the fins of the diverter to pull it from the faucet body.

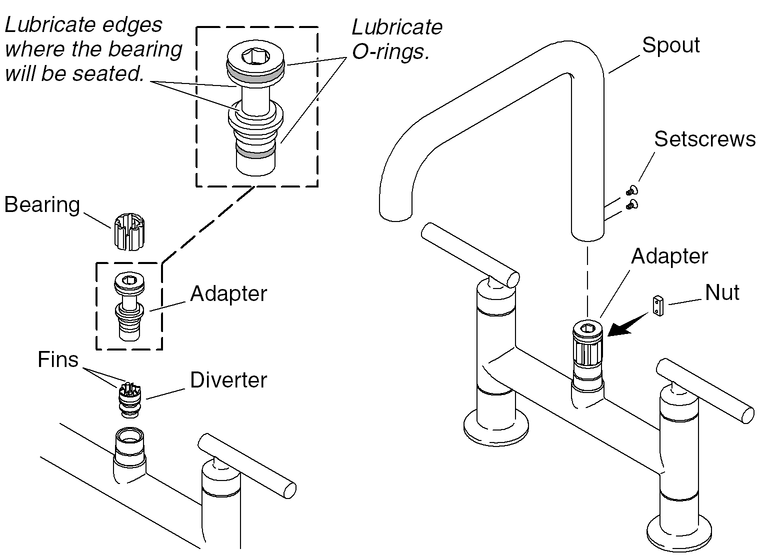

Reassemble the Faucet

Install the Faucet Parts

• Insert the diverter into the faucet body with the fins pointing out.

• Apply lubricant to the adapter where the top and bottom edge of the bearing will be seated.

• Place the bearing around the adapter.

• Apply lubricant to the O-rings on the adapter.

Reinstall the Spout

• Insert the adapter into the faucet body, then secure with a 3/8" hex wrench.

• Place the nut in the bearing. Turn the nut toward the back of the faucet.

• Position the spout with the setscrew holes at the back, then slide the spout over the adapter.

• Make sure the setscrew holes on the spout are aligned with the holes of the nut.

• Reinstall the setscrews.

• Turn on the water supply.

• Rotate the handles to the ON position, then check for leaks and proper operation.
