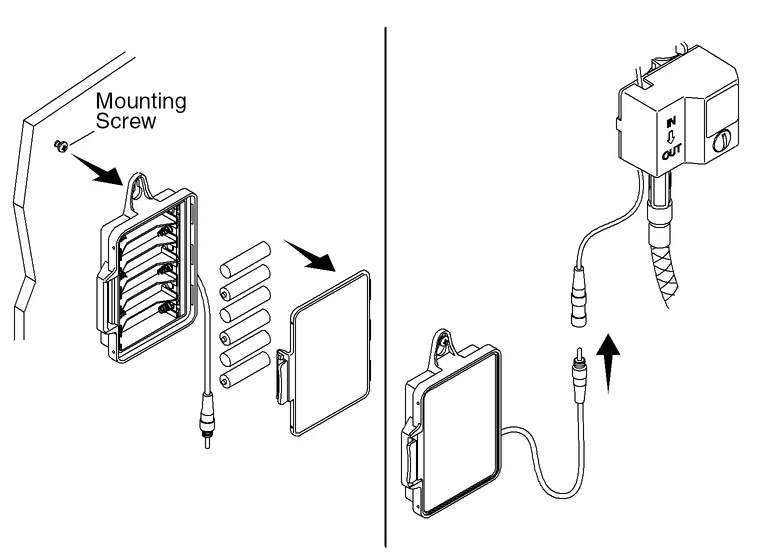

Changing Batteries on the Malleco Faucet

• Remove the battery holder from the mounting screw.

• Disconnect the battery holder wire from the power wire on the valve box.
  Important: Do not use rechargeable or lithium-ion batteries.

• Press the tab on the battery cover to remove. Remove the old batteries and replace with new ones.
  Note: Do not pinch the wires when assembling the cover.

• Reinstall the cover on the battery holder.

• Hang the battery holder on the mounting screw and reconnect the battery holder wire to the power wire on the valve box.

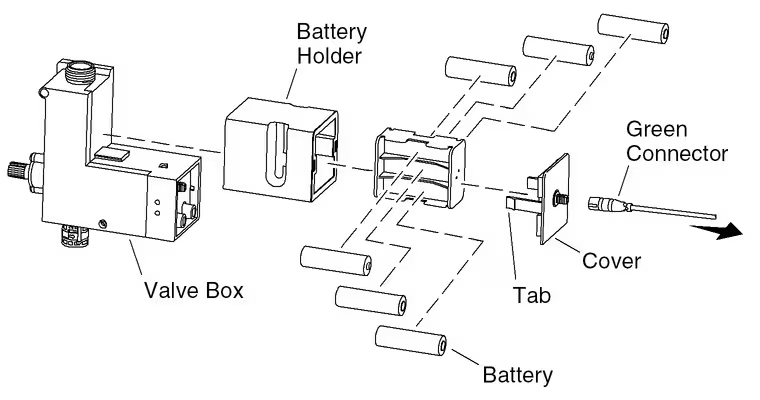

Changing Batteries on the Barossa Faucet

• Disconnect the green wire connector from the valve box.

• Slide the battery holder off the valve box.
  Important: Do not use rechargeable or lithium-ion batteries.

• Press the tabs to remove the cover from the battery holder. Replace the old batteries with new ones.
  Note: Do not pinch the wires when assembling the cover.

• Reinstall the cover on the battery holder.

• Slide the battery holder back onto the valve box.

• Reconnect the green wire connector to the valve box.
