Overview

Follow the steps below to remove and disassemble the Karbon kitchen or bathroom sink faucet sprayhead assembly.

Important: Retain and protect any parts that are removed during this procedure.


Remove the Sprayhead

• Turn off the water supply.

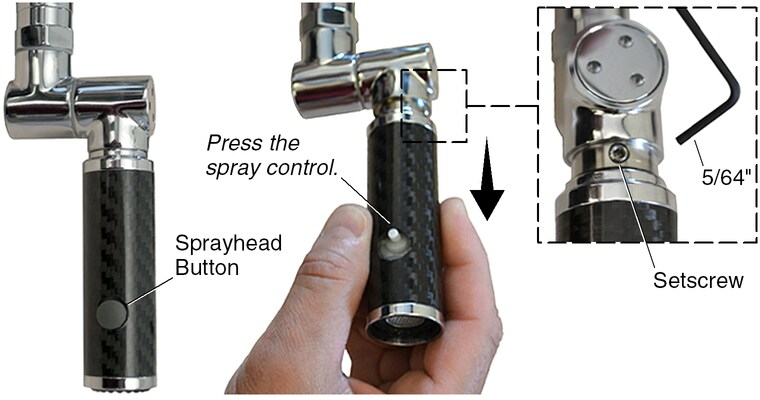

• Carefully pry off the sprayhead button from the spray control.

• Simultaneously press in on the spray control and pull outward on the housing to expose the setscrew.

Note: The assembly is spring loaded; hold on to the housing during this step to prevent damage and loss of parts.

• Use a 5/64" hex wrench to remove the setscrew and detach the sprayhead from the faucet.


Disassemble the Sprayhead

Important: Do not lose the spring located inside the housing. The spring will be loose when the sprayhead assembly is removed.

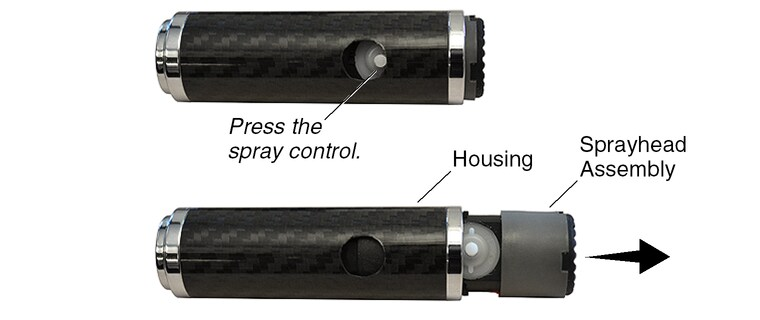

• Press in the spray control to release the housing from the sprayhead assembly.

• Pull the housing and sprayhead assembly apart.


Reassemble and Install the Sprayhead Assembly

• Make sure the spring is in place in the housing.

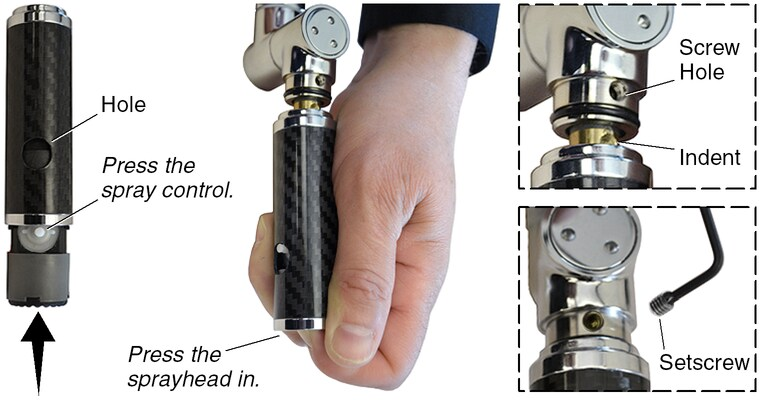

• Press in the spray control, and slide the housing over the sprayhead assembly so the spray control is in line with the hole in the housing.

• Press inward on the end of the sprayhead, and insert the sprayhead assembly into the faucet so the indent lines up exactly with the setscrew hole.

• Use a 5/64" hex wrench to reinstall and tighten the setscrew.

• Press the sprayhead button onto the spray control.

• Turn on the water supply.
