General Tips

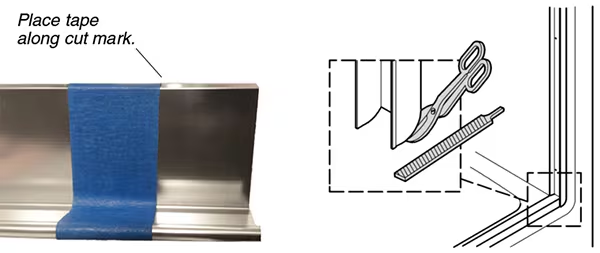

To cut tracks clean and straight:

• Use masking tape or painters tape to ensure a straight cut.

• Secure the track in a miter box when cutting with a hacksaw.

• If using a miter saw, use a blade meant for cutting metal.

To trim wall jamb corners:

• Use tin snips to clip the corners of the wall jambs.

• Use a file for a snug fit.

Specific Series Tips: 5900 Sliding Doors

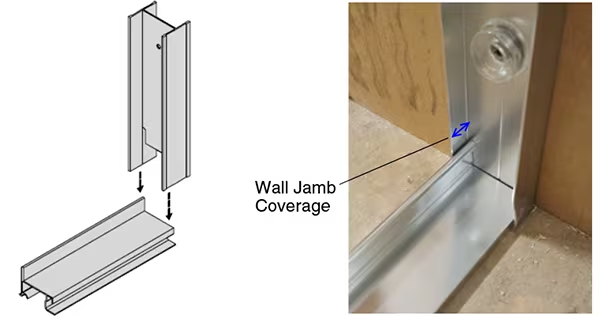

• The wall jambs fit over the bottom track leaving a small amount of adjustability from the inside legs of the wall jambs.

• If the bottom track is cut on an angle or 1/4" (6 mm) too short, the legs of the wall jambs should provide sufficient space to cover the mistake.

Specific Series Tips: 660/690 Sliding Doors

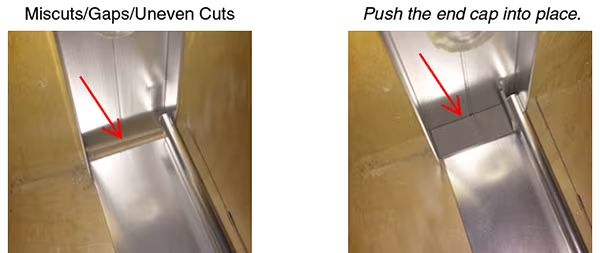

• If desired, install the end caps to cover gaps or uneven cuts on the bottom track.

• The end cap will cover approximately 1/2" (13 mm) on each side.

Specific Series Tips: 1500 Swinging Doors

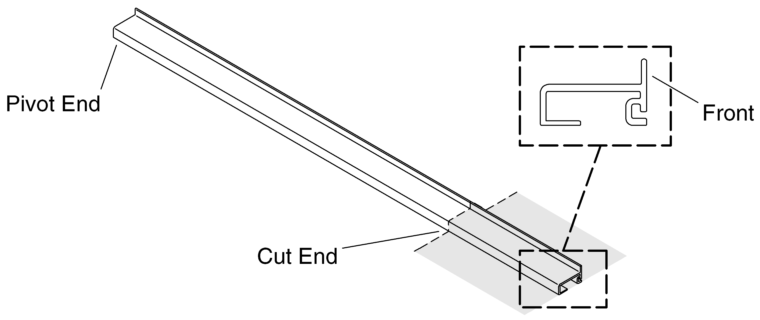

Cutting the Bottom Track

NOTE: Right side pivot is shown above.

• When cutting the bottom track, determine which side of the door will be open.

• Cut the bottom track on the end opposite the pivot end.

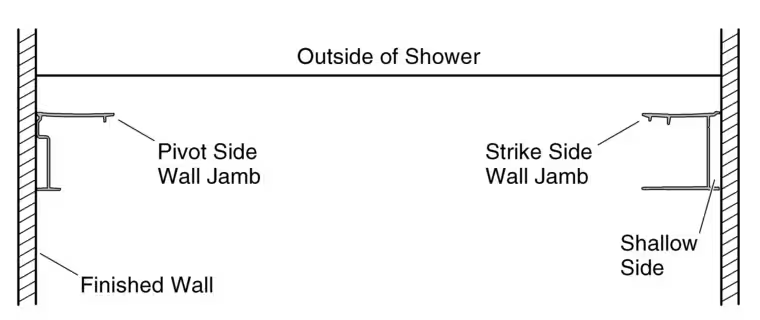

Wall Jamb Placement

• When installing the wall jambs, position the wall jambs as shown above.

• The shallow side should be closer to the finished wall.
