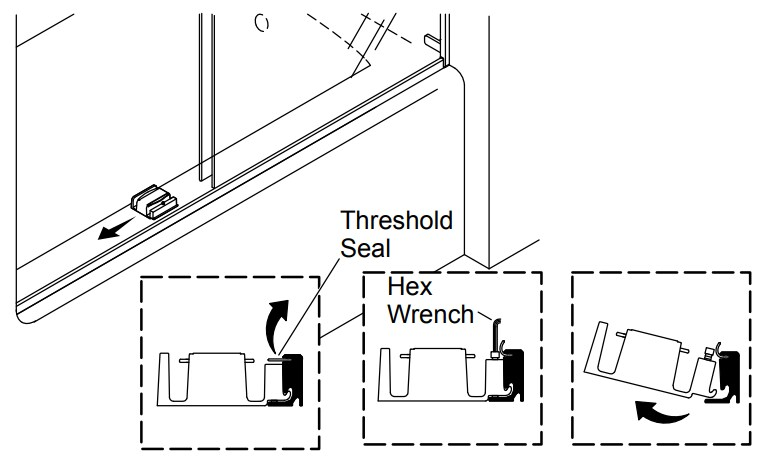

Remove the Existing Centerguide

• Lift the threshold seal to access the screw.

• Loosen the screw with a 5/32" hex wrench.

• Slide the centerguide down the threshold until it clears the door panels.

• Lift the centerguide from the threshold lip.

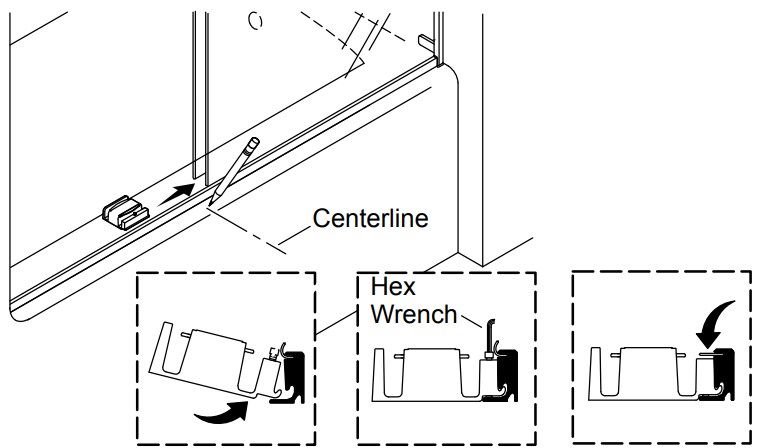

Install the New Centerguide

IMPORTANT! The centerguide must be fully seated behind the threshold lip as shown.

• Slide both door panels to one end of the shower.
  Thread the screw partially into the centerguide hole. * Ensure the end of the screw does not protrude from the bottom of the centerguide.

• Measure and mark the centerline of the threshold on the outside of the shower base/bath ledge.

• Rotate the centerguide into place in the threshold groove as shown.

• Slide the centerguide down the threshold until the screw aligns with the centerline mark.

• Slide the door panels into the centerguide channels.

• Lift the threshold seal to access the screw.

• Handtighten the screw with a 5/32″ hex wrench, then tighten an additional one half turn.
