Purpose of the Retainer

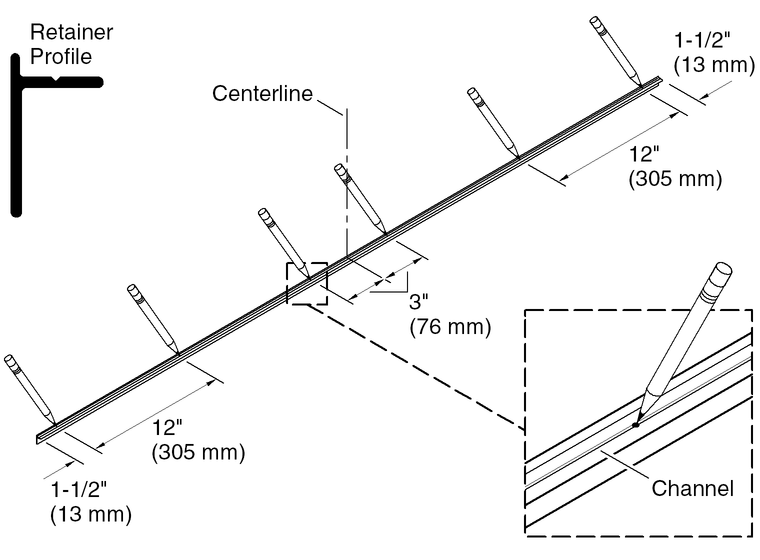

IMPORTANT! The screws must be positioned on the retainer at the dimensions shown above.

• On the top of the retainer, mark the centerline to use as a reference point.

• Mark the six screw hole locations in the channel at the locations shown.

• Drill 5/32" holes in the retainer channel at the marked locations.

• Remove all burrs and metal shavings.

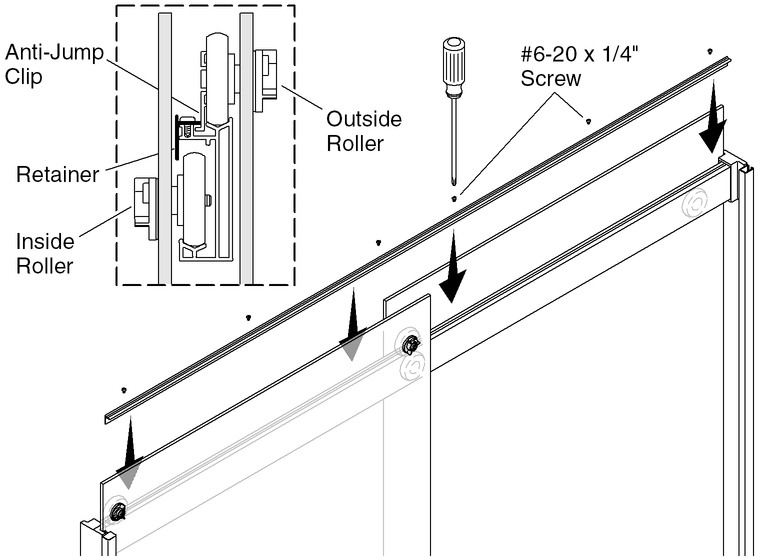

Install the Retainer

• Verify the rollers of the inside and outside panels are properly positioned on the header tracks.

• Slide the retainer between the glass panels and onto the header.

• Secure the retainer to the header with six #6-20 x 1/4" screws.

IMPORTANT! Confirm the retainer is correctly installed.

• Confirm the top portion of the rollers on the inside panel are positioned behind the retainer.

• Confirm the anti-jump clips on the outside panel rollers are oriented downward.
