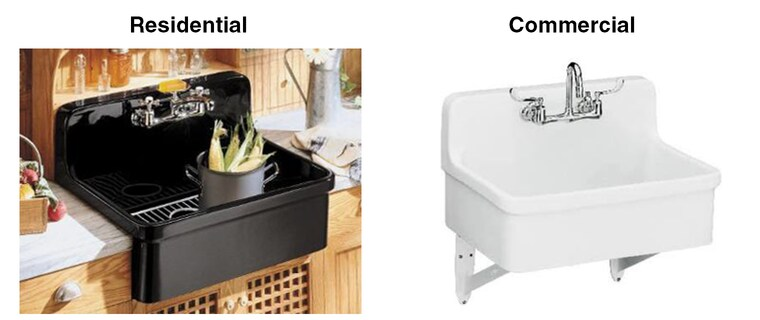

K-12700 Kitchen Sink

• The Gilford kitchen sink is designed for residential use.

• This sink is only available with two faucet holes on 8" (203 mm) centers.

• It is designed with a 3-5/8" (92 mm) diameter outlet to accommodate a standard kitchen sink drain and strainer.

K-12781 and K-12787 Utility Sinks

• Gilford utility sinks are intended for commercial use.

• The sink is designed with a 2-1/4" (57 mm) diameter outlet to accommodate a 1-1/2" (38 mm) commercial drain.

• Model K-12781 is a single center hole sink.

• Model K-12787 has two faucet holes on an 8" (203 mm) centers sink.

• The K-1814-P wall bracket set and part 63002 (tie bar) are required for wall-mount installation. These products are sold separately.

Service Sink Flush Valve Requirements

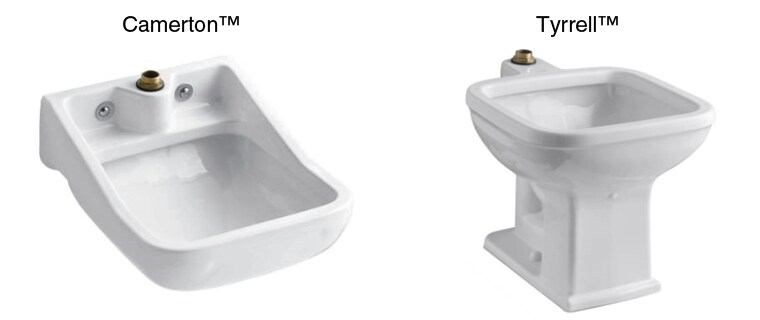

• Camerton K-12867 and Tryell K-6676 are both blow-out service sinks.

• Each sink requires a 5 to 7 gpf (19 to 27 lpf) valve, and requires a minimum running pressure of 25 psi (172 kPa).

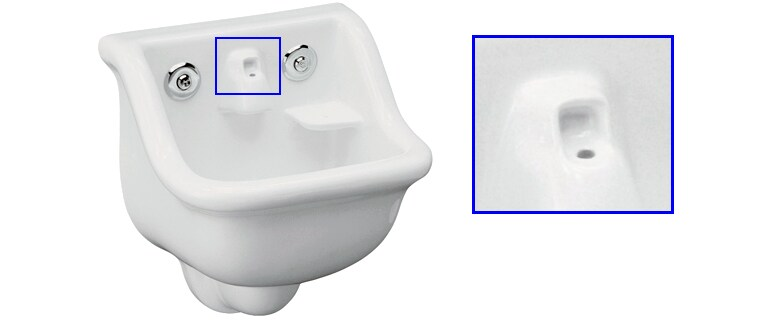

Chardon™ Water Spout

• The Chardon K-2475 sink has a bubbler/water fountain spout that comes out of the sink hole located between the handles.

Harborview™ Sink Hangers and Safety Brackets

• The Harborview K-6607 sink does not ship with hangers or safety brackets. These items are included with the Harborview Legs K-6617.

• If planning for a wall hung installation and custom legs, you will need to purchase four hangers and one safety bracket.

Service Sink Trap Coatings

• The inside of the K-6672 and K-6673 adjustable trap is enameled.

• The outside is glazed ground coat to prevent rusting.
