Toilets & SeatsInstall the Push Button Rods for a Dual Flush Toilet

Toilets & Seats

Install the Push Button Rods for a Dual Flush Toilet

1

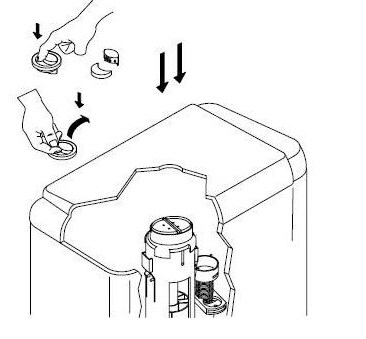

Remove the tape covering the push buttons on the tank lid. Remove the protective foam pad.

2
Press the large push button down and remove the small push button and then remove the large button. Set both buttons aside.

3
Place the cover on the tank.

4
Insert the larger rod (from the tank assembly bag) into the large hole.

5
Insert the smaller rod into the smaller hole of the push button housing.


1
Cut both rods even with the top of the push button housing.

2
Insert the rods into the push buttons.

3
Insert the larger rod through the larger hole in the push button housing until it clocks into place.

4
Repeat with the other rod.

5
Test flush the toilet to ensure proper operation.
