Cleaning the Real Rain Panel

Overview

If flow from the real rain panel is reduced, or debris or deposits are visible on the nozzles, the panel must be cleaned. Rub the nozzles clean with a finger or soft brush. If the flow is still reduced or the debris is still in place, follow the instructions in the step-by-step guide below to clean the rain panel.

1

Remove the Rain Panel

  • Remove the logo cap. Remove the center fastener with a 3/16" hex wrench.

  • Gently pry the corner fastener covers off to reveal the corner fasteners.
    IMPORTANT: Risk of product damage. The corner fasteners are of a quick connect type. Only use hand tools on these fasteners.

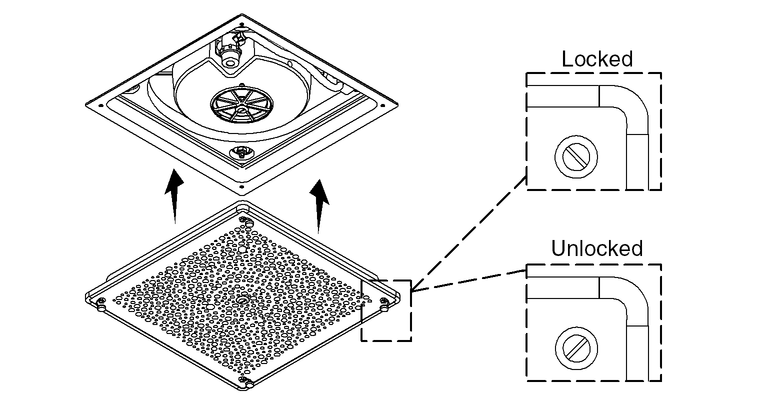

  • While supporting the panel, turn each corner fastener 90 degrees to the unlocked position. Remove the rain panel.

2

Remove the Trim

IMPORTANT: Risk of product damage. Do not allow cleaners to contact the metal trim components. Permanent staining or corrosion may occur.

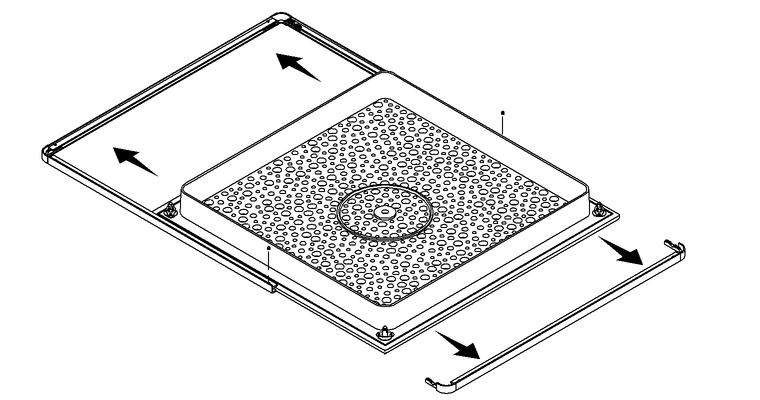

  • Loosen two setscrews as shown using a 5/64" hex wrench.

  • Carefully remove the trim edges from the panel as shown.

3

Clean the Rain Panel

1
Fold the corner caps over the fasteners.

2
Set the rain panel facedown in a plastic tray on a flat surface.

3
Make a solution of 50% water and 50% white vinegar.

4
Pour the solution into the rain panel until the nozzles are filled.

5
Let the solution soak for 20-30 minutes.

6
Remove the panel from the plastic tray and lightly brush the rain panel with a soft nylon brush or soft toothbrush.

7
For stubborn nozzles, rub with a finger.

8
Rinse the rain panel off thoroughly.

9
Pat the panel dry with an absorbent, lint-free cloth. Ensure the panel is dry where the trim is installed.

4

Install the Trim

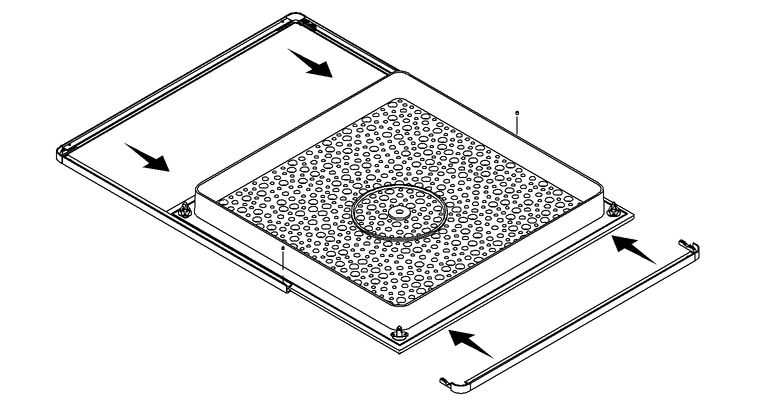

  • Reinstall the trim edges and secure the setscrews with a 5/64" hex key.

5

Install the Rain Panel

1
Secure the rain panel assembly to the back panel by pushing the corner fasteners upwards until a “click” is heard from each corner. Ensure each corner fastener is in the locked position as shown.

2
Install the center fastener with a 3/16" hex wrench.

3
Install the logo cap over the center fastener.

4
Fold the covers onto the four corner fasteners.
