Affected SKUs

K-11748-* Rite-Temp® Pressure Balancing Valve with Diverter

If K-11748 Needs Additional Outlets

IMPORTANT! Do not install a valve with a shut-off after the shower port, as this may result in cross-flow of the water.

NOTE: If you want to use a showerhead and handshower at the same time, the K-11748 valve should not be used. There will not be sufficient water flow. We recommend you install a K-304 valve and follow the steps in the "K-304 Valve - Adding a Transfer/Diverter Valve" document. A diverter bath spout is required for this installation.

NOTE: If the transfer or diverter valve is only being used as a 2-way valve, a 2-way conversion must be completed following the instructions provided.

• Install the K-11748 following the instructions provided with the valve.

• If needed, install a K-728 transfer valve or K-737 diverter valve in-line with the top outlet following the instructions provided with the valve.

• If two outlets will be used, convert the valve to a 2-way valve.

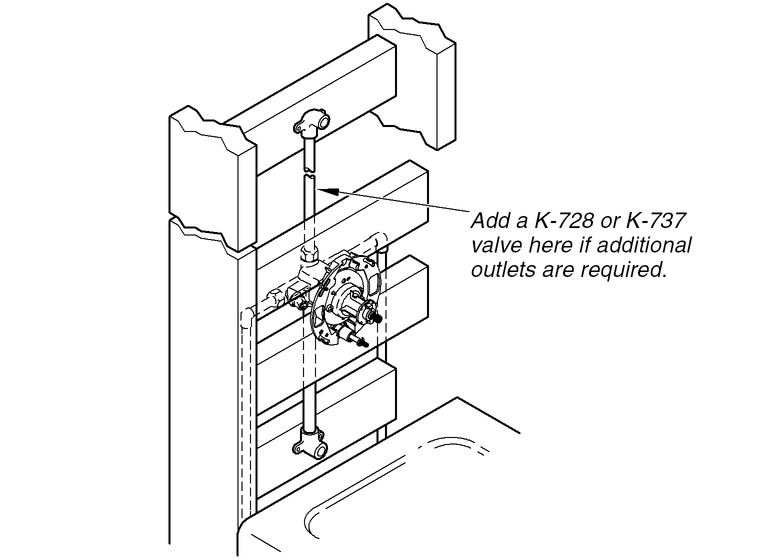

• If additional ports are needed for your shower configuration when using a K-11748 valve, an additional valve can be added above the top port at the location shown.

NOTE: For more information on the K-728 transfer valve or K-737 diverter valve, including installation instructions, go to the product page at www.us.kohler.com.
