Valves (Shower & Bath)
K-9516 MasterShower® Slidebar
Removing the Housing/Cover

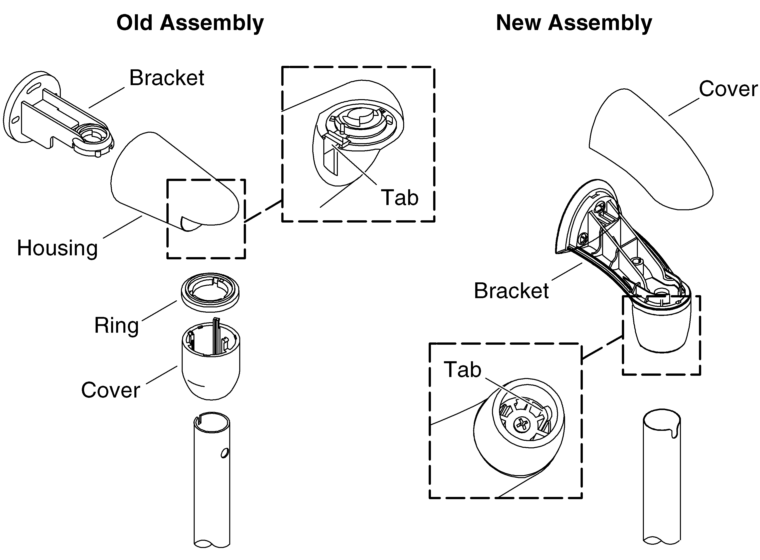

Old Assembly
Pull down firmly on the cover to separate it from the housing.
Remove the ring.
Press the tab to pull the housing away from the mounting bracket.
To reinstall, fit the housing over the bracket, and snap into place.
New Assembly
Pull up firmly on the cover to separate it from the mounting bracket.
To reinstall, press the cover onto the bracket.
