Changeover Dates by Line 4/3/09

Memoirs Classic Rite-Temp trim

Finish: BN, BV, CP, G

Memoirs Stately Rite-Temp trim

Finish: BN, BV, CP, G, RN

Changeover Dates by Line 10/13/09

Revival Rite-Temp trim

Finish: AF

Memoirs Stately Rite-Temp trim

Finish: AF

Redesigned Features

The Memoirs and Revival Rite-Temp showering trim has been redesigned for increased functionality and a smooth aesthetic.

• The original Memoirs Classic and Revival trim used two screws to secure the faceplate to the valve.

• The original Memoirs Stately trim used a collar and sleeve to secure the faceplate to the valve.

• The new trim features a retainer secured to the valve. The bonnet on the handle assembly threads onto the retainer, trapping the faceplate to the wall.

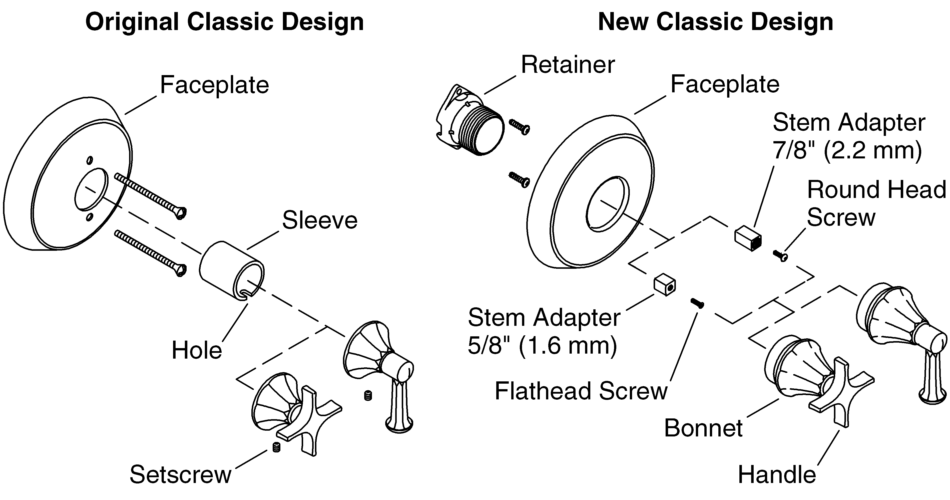

Memoirs® Classic Rite-Temp® Trim

• To remove the setscrew on the original handle trim, the sleeve may need to be rotated to align the hole over the setscrew.

Affected Product: K-T464-3C Memoirs Classic

Description: Rite-Temp bath and shower trim, cross handle

Affected Product: K-T464-4C Memoirs Classic

Description: Rite-Temp bath and shower trim, lever handle

Affected Product: K-T465-3C Memoirs Classic

Description: Rite-Temp shower trim, cross handle

Affected Product: K-T465-4C Memoirs Classic

Description: Rite-Temp shower trim, lever handle

Affected Product: K-T466-3C Memoirs Classic

Description: Rite-Temp valve trim, cross handle

Affected Product: K-T466-4C Memoirs Classic

Description: Rite-Temp valve trim, lever handle

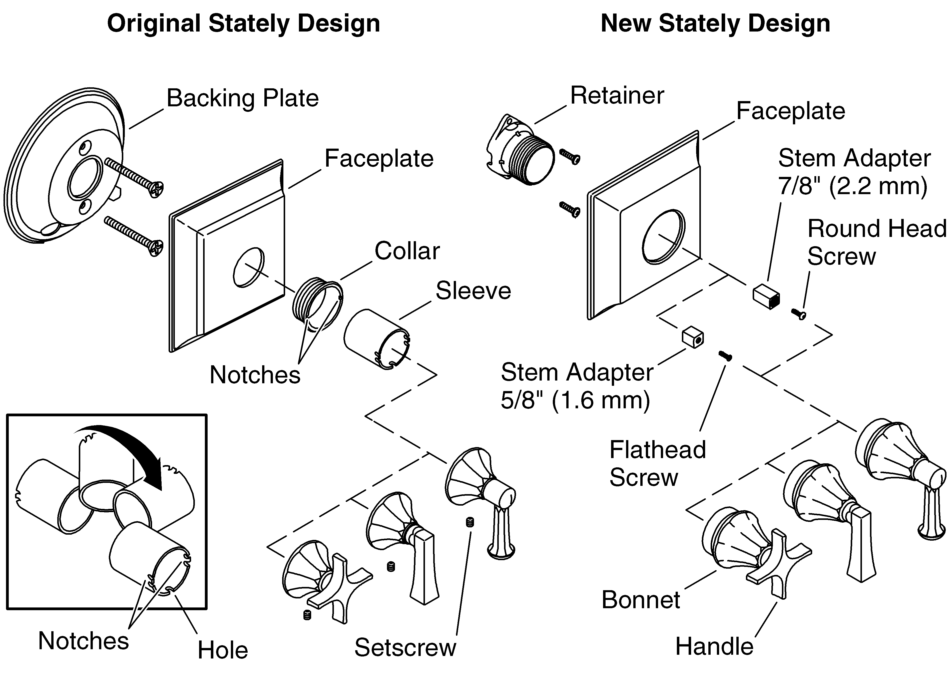

Memoirs® Stately Rite-Temp® Trim

• To remove the setscrew on the original handle trim, the sleeve may need to be rotated to align the hole over the setscrew.

• The sleeve is also used as a tool to remove the collar. Flip the sleeve, engage the notches, and unthread the collar.

Affected Product: K-T461-3S Memoirs Stately

Description: Rite-Temp bath and shower trim, cross handle

Affected Product: K-T461-4S Memoirs Stately

Description: Rite-Temp bath and shower trim, lever handle

Affected Product: K-T461-4V Memoirs Stately

Description: Rite-Temp bath and shower trim, Deco lever handle

Affected Product: K-T462-3S Memoirs Stately

Description: Rite-Temp shower trim, cross handle

Affected Product: K-T462-4S Memoirs Stately

Description: Rite-Temp shower trim, lever handle

Affected Product: K-T462-4V Memoirs Stately

Description: Rite-Temp shower trim, Deco lever handle

Affected Product: K-T463-3S Memoirs Stately

Description: Rite-Temp valve trim, cross handle

Affected Product: K-T463-4S Memoirs Stately

Description: Rite-Temp valve trim, lever handle

Affected Product: K-T463-4V Memoirs Stately

Description: Rite-Temp valve trim, Deco lever handle

Affected Product: K-T469-3S Memoirs Stately

Description: Deck-mount bath trim, cross handle

Affected Product: K-T469-4S Memoirs Stately

Description: Deck-mount bath trim, lever handle

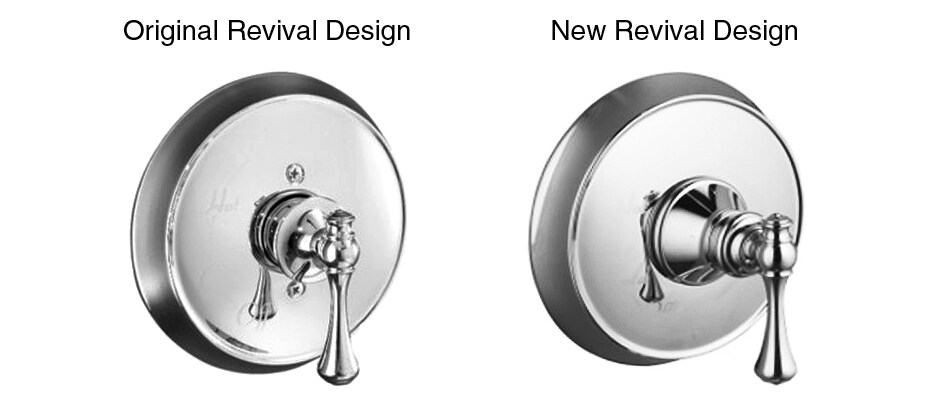

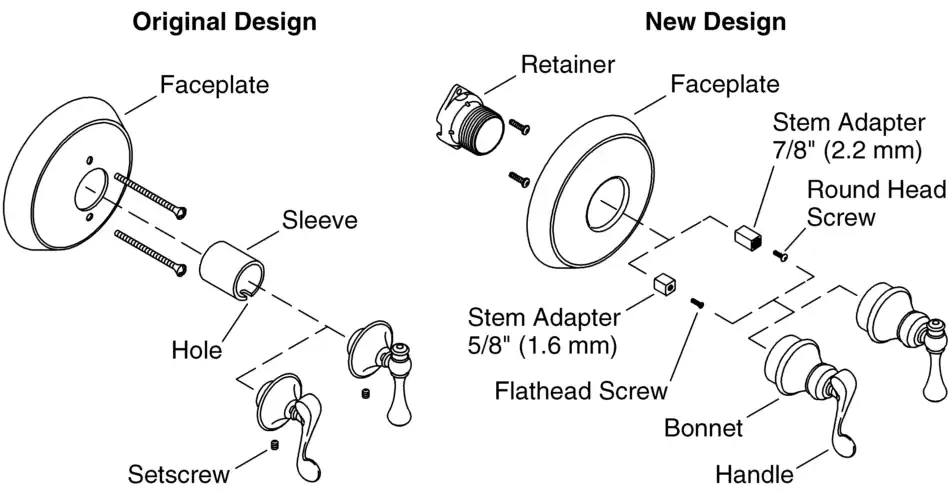

Revival® Rite-Temp® Trim

• To remove the setscrew on the original handle trim, the sleeve may need to be rotated to align the hole over the setscrew.

Affected Product: K-T16113-4 Revival

Description: Rite-Temp bath and shower trim, scroll lever handle

Affected Product: K-T16113-4A Revival

Description: Rite-Temp bath and shower trim, traditional handle

Affected Product: K-T16114-4 Revival

Description: Rite-Temp shower trim, scroll lever handle

Affected Product: K-T16114-4A Revival

Description: Rite-Temp shower trim, traditional handle

Affected Product: K-T16115-4 Revival

Description: Rite-Temp bath and shower trim with push-button diverter, scroll lever handle

Affected Product: K-T16115-4A Revival

Description: Rite-Temp bath and shower trim with push-button diverter, traditional handle

Affected Product:K-T16116-4 Revival

Description: Rite-Temp shower trim, scroll lever handle

Affected Product: K-T16116-4A Revival

Description: Rite-Temp shower trim, traditional handle

Affected Product: K-T16117-4 Revival

Description: Rite-Temp valve trim, scroll lever handle

Affected Product: K-T16117-4A Revival

Description: Rite-Temp valve trim, traditional handle
